MA



Three Phase squirrel cage standard and energy efficient motors

Bharat Bijlee has been a pioneer in the field of standard & special electric motors as well as pumps.

This catalogue covers TEFC standard and Energy Efficient 3 phase squirrel cage motors.

Product Range

standard motors                0.12 KW (Frame 63) to 132 KW

Type MA                            (Frame 315M)

The enquiry should accompanied with the following information

  1. GD2 and relevant speed of driven equipment

  2. Period of acceleration if available

  3. Duty cycle / sequence of operation

  4. Speed - Torque diagram of the driven equipment

  5. Method of braking (Mechanical of Electrical)

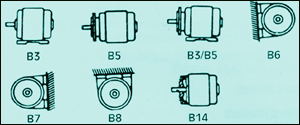

    Horizontal Mounting

    Horizontal Mounting
    Vertical Mounting

    Vertical Mounting
Motor type Frame size Bearing Numbers (C3 Clearance) Terminal
box Type		 Terminals No. of cable entries Maximum conductor cross section (mm2)
DE NDE NO. Size
MA063 63 6201 6201
MA071 71 6202 6202 gk030 3* M4 1 4
MA080 80 6004 6004
MA09S/L 90S,90L 6205 6205 gk130 3/6* M4 2 6
MA 10L 100L 6206 6205 gk230 3/6* M5 2 10
MA 11M 112M 6206 6205
MA 135 /M 132S, 132M 6208 6208 gk330 6 M5 2 16
MA 16M/L 160M, 160L 6309 6209
MA 18M/L 180M, 180L 6210 6210 TB180 6 M6 2 50
MA20L 200L 6212 6212 TB225 6 M8 2 70
MA225/M 2255, 225M 6213 6213
MA25M 250M 6215 6215 TB280 6 M10 2 150

MA285/M

280S, 280M

A-6316

B-6317

A-6316

B-6316










MA 315/M 315S, 315M NU 319 6319 TB 315 6 M12 2 240


Special Features

Following extra features may be provided wherever feasible at extra charge and against specific enquiry.

1.    Mechanical features

1.1    Special Mounting

1.2    Non standard shaft extension

1.3    Non standard keyway

1.4    Degree of protection IP56, IP 65 as per IS 4691

1.5    Low vibration motors as per IS 12075

1.6    Acid alkali proof epoxy paint

1.7    Epoxy gel coat on overhangs

1.8    Auxiliary nameplate

1.9    Direction indicating arrows

1.10  Non standard colour scheme

1.11  Additional earthing terminal

1.12  Single compression/double compression cable gland

1.13  Terminal box on LHS for frames 90 to 160 and RHS/LHS for frames 180 onwards*

1.14  CI body in 90S, 90L & 100L

1.15  Cable Spreader box for larger cable sizes



2.    Electrical features



2.1    Motors suitable for voltages 110V to 660V

2.2    Motors suitable for frequency 25 Hz to 60Hz

2.3    Dual voltage motors

2.4    Polarities higher than 8 pole

2.5    2,3 speed motors

2.6    P.T.C.  thermist      or protection

2.7    Class H insulation scheme


         * Optional at no extra cost



Marine Motors

Bharat Bijlee Limited offers Marine Motors for following specifications -


1)  LRS  -  Lloyds Register of Shipping
2)  ABS  - American Bureau of Shipping
3)  DNV - Det Norske Veritas, Norway.
4)  IRS - Indian Register of Shipping.
